Tolerance Control Cobalt Chrome Alloy And Nickel Base Alloys Metal Spinner Disc

China Tolerance Control Cobalt Chrome Alloy And Nickel Base Alloys Metal Spinner Disc supplier
Tolerance Control Cobalt Chrome Alloy And Nickel Base Alloys Metal Spinner Disc supplier Tolerance Control Cobalt Chrome Alloy And Nickel Base Alloys Metal Spinner Disc supplier Tolerance Control Cobalt Chrome Alloy And Nickel Base Alloys Metal Spinner Disc supplier

Large Image :  Tolerance Control Cobalt Chrome Alloy And Nickel Base Alloys Metal Spinner Disc

Product Details:

Place of Origin: Liaoning ,Shenyang
Brand Name: SYTOP
Certification: ISO9001
Model Number: TP001

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: USD 500- 1000/PC
Packaging Details: foam sheet inside packing and wooden case outside , pallet for export shipping
Delivery Time: 25-45 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300PCS
Contact Now
Detailed Product Description
Material: Cobalt Chrome And Nickel Alloy Chemical Composition: Ni-Cr-W And Co Cr W
Application: Glasswool Production Line Properties: Wear And Corrosion Resistance
Life Time: More Than 168h Color: Silver And Grey
Hardness: 333-48HRC



What is the Details of our Spinner  ?



Material : Cobalt and nickel base alloy
Process : Investment  castings
Application : glasswool industry
Density : 8.4 g/cm ³
Overall dimensions :

φ200~500mm



Hole dimensions: φ0.5~1.0mm
Holes amount: 7000~33000 units
Operating temperature: 1050°C
Rotating speed: ≤3000 r/min
Tolerance control : grinding surface , tolerance upon drawing
Fiber dimensions: ≤7μm
Lifetime: ≥168 hours
Package : carton or wooden case , pallet for export






Finished and unfinished spinner discs/centrifugal apparatus, all sizes of nickel and cobalt based spinner discs/centrifugal apparatus can be made to specifications.

Chemical Components & Physical Properties



 Grade NO. Chemical Components Physical Properties

Density

(G/cm3)≥

Hardness

HRC≥

Elongation

Mpa≥

TPM10

C   CR   NI   W

0.4 30    50  15

8.3 35 700
2.4879

C    CR   NI    W   Fe

0.4   28   48    5    Bal.

8.3   400
CoCrW31

C      CR   NI       W    Co

0.5    26 1  0.5    7.5   Bal.

8.5 32 735





Drawing for reference



.jpg

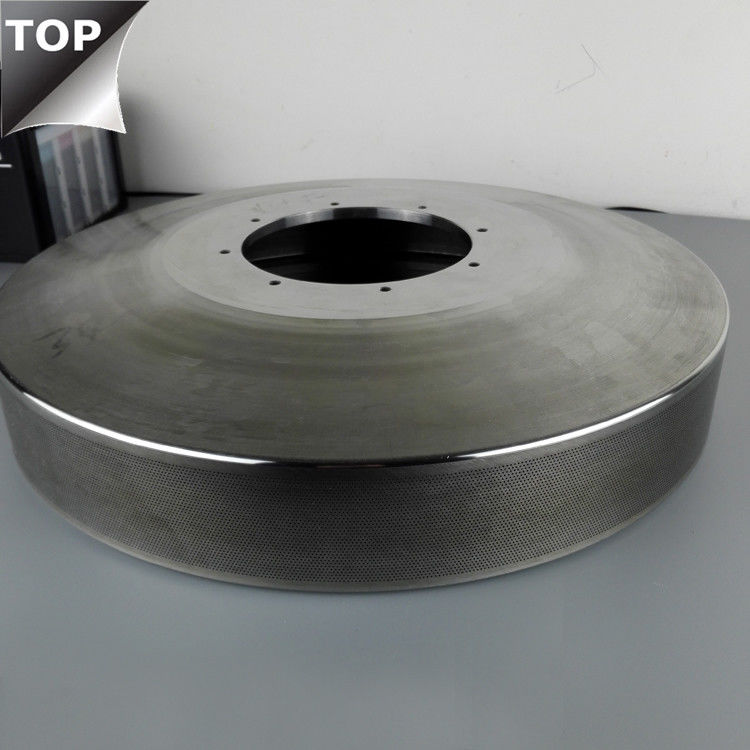

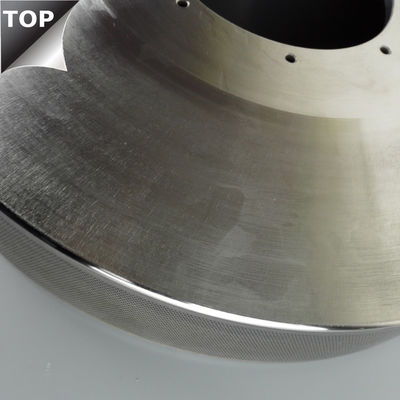

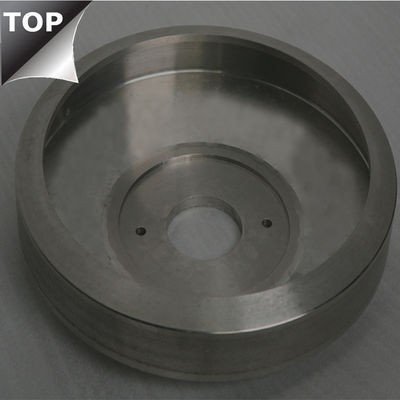

Products pictures :



Tolerance Control Cobalt Chrome Alloy And Nickel Base Alloys Metal Spinner Disc





Casting process :



Tolerance Control Cobalt Chrome Alloy And Nickel Base Alloys Metal Spinner Disc







Application :



Glass wool insulation production line



Company activity :

Tolerance Control Cobalt Chrome Alloy And Nickel Base Alloys Metal Spinner DiscTolerance Control Cobalt Chrome Alloy And Nickel Base Alloys Metal Spinner Disc



Shenyang Top New Material Co., Ltd owns its advantages in the industrial metal materials area. The company specializes in the R&D, manufacturing and sales of investment casting and powder metallurgy components made of Cobalt Chrome alloy. Founded in Year 2001, SYTOP has 16 years producing experience and 10 years exporting experience. Our solid quality and integrity wins us a good name in our customers.



FAQ



Q1: What is the Warranty for the cobalt alloy products ?

A1: We own high precision grading machine to control geometry dimensions and apply ultra fine grain size substrate coated with high performance coatings to guarantee the lifetime of our products, which can satisfy every working condition.If any quality problems on our side occurred in this period , we will take on the shipping cost and replacement.


Q2: Do you provide free samples?

A2: Yes, usually we provide free samples for testing under the condition of freight paid by customer.



Q3: What is your minimum order requirement?

A3: We will indicate the MOQ for each item in the quotation sheet. We accept the sample and trial order. If the quantity of single item can't reach the MOQ, the price should be sample price.


Q4: What is the delivery time of your products?

A4: It depends on the inventory availability.If items needed are in stock, the delivery time would be within 8 work days, but if not the delivery time would be around 20 work days.


Q5: Can you manufacture carbide Special-shaped products?

A5: Yes, we can. We can produce both standard end mills and special tools. We can make them according to your drawings and samples.


Q6: May I have my order working schedule ?

A6: Yes, we will send working schedule of your order each week. We will inspect and test all merchandise in case of damaging and missing parts before shipment. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.


Your feedback is our best honor, please do not hesitate to contact us and we can let you feel more confident to our company and products.
