Powder Metallurgy Tantung - G 25 Cast Alloy Cutting Tool Material Low Fiction Coefficient

Powder Metallurgy Tantung - G 25 Cast Alloy Cutting Tool Material Low Fiction Coefficient

  • Powder Metallurgy Tantung - G 25 Cast Alloy Cutting Tool Material Low Fiction Coefficient
  • Powder Metallurgy Tantung - G 25 Cast Alloy Cutting Tool Material Low Fiction Coefficient
Powder Metallurgy Tantung - G 25 Cast Alloy Cutting Tool Material Low Fiction Coefficient
Product Details:
Place of Origin: Liaoning , China
Brand Name: SYTOP
Certification: ISO9001
Model Number: TP012
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: USD 8/PC
Packaging Details: foam sheet inside , carton case outside ,pallet for export
Delivery Time: 20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000PCS /PC
Contact Now
Detailed Product Description
Material: Tantung-G 25 Properties: Wear Resistance And Corrosion Resistance
Hardness: 57-60HRC Density: 8.84g/cm3
OEM: Accept Size: Upon Drawing
High Light:

cobalt chrome alloy

,

aluminum casting alloys

About Tantung



Tantung is a cast alloy cutting tool material composed principally of chromium ,tungsten ,columbium and carbon in a cobalt matrix . These elements combined in the proper proportions and cast in chill molds give tantung its most important characteristic , the ability to retain its cutting hardness t red heat temperature up to 1500℉, It is neither high speed steel nor carbide , it is unique .



Tantung has a high transverse rupture strength, low coefficient of fiction and excellent resistance to corrosion it is rough , readily adsorbs shock and impact ad is non-magnetic , it likes to work .



Material composition



Brand C Mn Si Cr Ni Mo W Co Fe P S

Density

(g/cm3)

Hardness

(HRC)

Tantung-G 25 2.2-2.8 1-3   27-32 7 Ta/Nb 14-19 Bal. 2-5     8.84 57-60
Tantung-G 35 3.3-3.8 1-3   27-32 7 Ta/Nb 14-19 Bal. 2-5     8.80 60-63



Typical application



Material Choose Typical Application Process
Tantung-g 25 Pump bushing ,rings ,wearing bar and sheet and

Powder metallurgy and investment casting



Tantung-g 35 Pump sleeve ,wearing bar and sheet

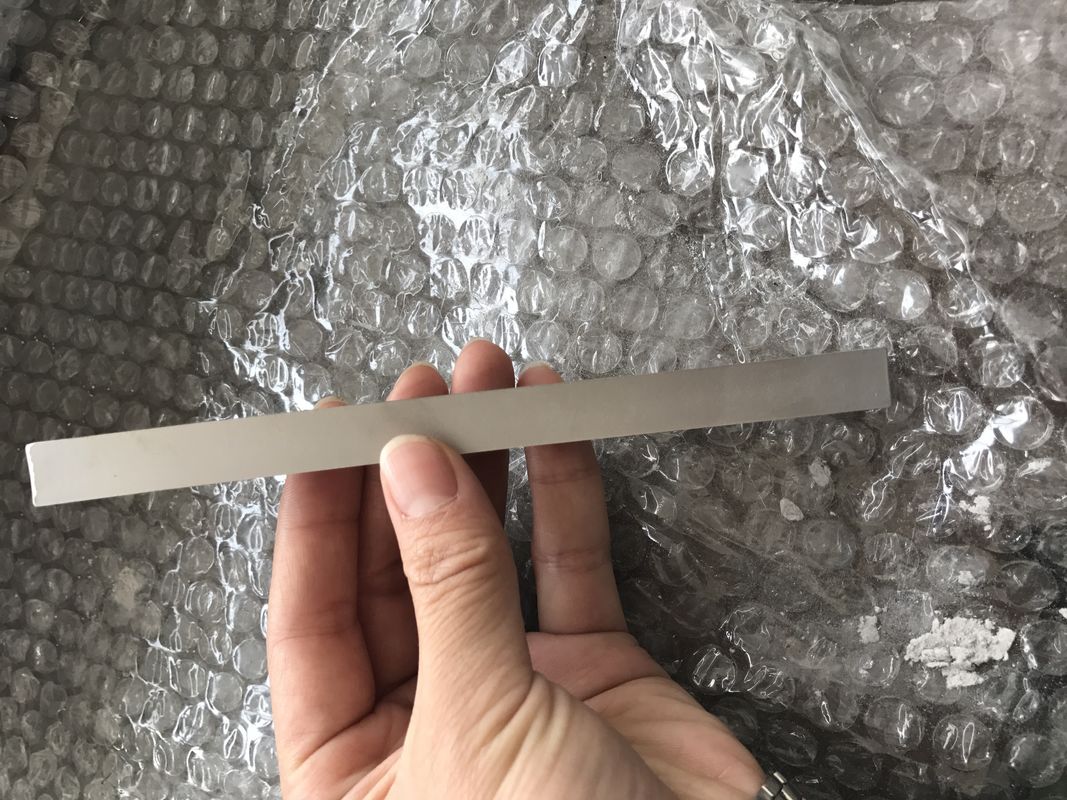

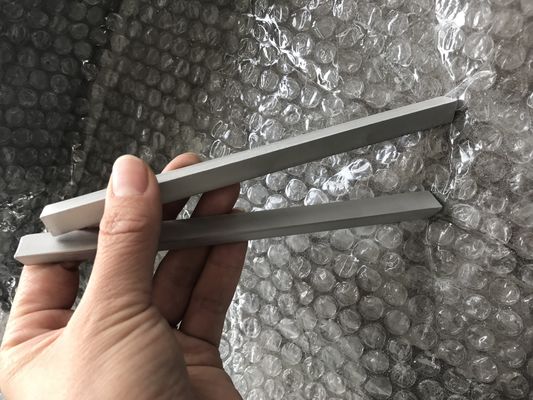

Products show :



Powder Metallurgy Tantung - G 25 Cast Alloy Cutting Tool Material Low Fiction Coefficient 0





About us



Shenyang Top New Material Co., Ltd owns its advantages in the industrial metal materials area. The company specializes in the R&D, manufacturing and sales of investment casting and powder metallurgy components made of Cobalt Chrome alloy. Founded in Year 2001, SYTOP has 16 years producing experience and 10 years exporting experience. Our solid quality and integrity wins us a good name in our customers.



Powder Metallurgy Tantung - G 25 Cast Alloy Cutting Tool Material Low Fiction Coefficient 1



Product Features



1. High temperature resistance

The strength keeps stable up to 800℃ and it can even momentarily used at 1200℃.



2. Wear resistance

Due mainly to the unique inherent characteristics of the hard carbide phase dispersed in a

CoCr alloy matrix, it has exceptional wear and galling resistance.



3. Corrosion resistance

This exellent and lovely property allows this kind of material parts to be used in oil&gas, slurry, acid liquid and any other mediums.





Production process



1. Powder metallurgy process

A. Better metallurgical structure, better strength

B. Various types of automatic pressing machines from 3 tons to 630 tons. The ordered profiles can be very flexible.





Powder Metallurgy Tantung - G 25 Cast Alloy Cutting Tool Material Low Fiction Coefficient 2



2. Investment casting process

Different volume of furnaces, the order quantity can be very flexible.



3. Machining

CNC, lathing, drilling, milling, grinding, wire cutting, polishing





FAQ



Q1: What is the Warranty for our products ?
A1: We own high precision grading machine to control geometry dimensions and apply ultra fine grain size substrate coated with high performance coatings to guarantee the lifetime of our products, which can satisfy every working condition.If any quality problems on our side occurred in this period , we will take on the shipping cost and replacement.
Q2: Do you provide free samples?
A2: Yes, usually we provide free samples for testing under the condition of freight paid by customer.
Q3: What is your minimum order requirement?
A3: We will indicate the MOQ for each item in the quotation sheet. We accept the sample and trial order. If the quantity of single item can't reach the MOQ, the price should be sample price.
Q4: What is the delivery time of your products?
A4: It depends on the inventory availability.If items needed are in stock, the delivery time would be within 8 work days, but if not the delivery time would be around 20 work days.
Q5: Can you manufacture Special-shaped products?
A5: Yes, we can. We can produce both standard and special prosucts. We can make them according to your drawings and samples.
Q6: May I have my order working schedule?
A6: Yes, we will send working schedule of your order each week. We will inspect and test all merchandise in case of damaging and missing parts before shipment. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
